TBS Lucid FC Pro 2020 Flight Controller (MPU6000) / Stack

The Pro version of the Lucid FC uses the MPU6000 ICM (gyro). Freestyle Version with ICM-42688P here.

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

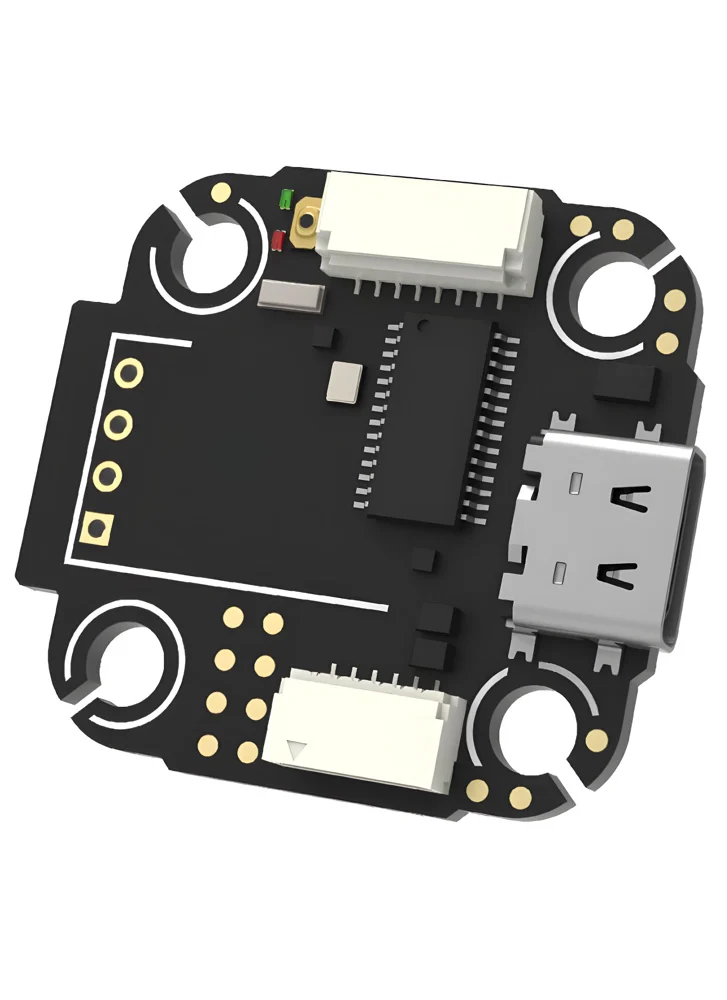

The TBS Lucid Flight controller is a 20×20 masterpiece that is built for the Lucid flight stack, but compatible with all 20×20 ESCs. It is similarly designed for the TBS Crossfire & TBS Tracer ecosystem, but will work with any radio receiver – we don’t judge 🙂

There are plug & play connectors for the DJI O3 digital system and 4in1 ESCs, following the Betaflight connector standard. The solder pads for auxiliary devices are designed and arranged to be easy to solder and logical for installation in your favourite drone frames, such as the TBS Source One.

Default/recommended port assignment:

• UART2: ESC Telemetry
• UART3: DJI O3 Air Unit
• UART4: DJI O3 SBus
• UART5: CRSF Rx
• UART7: GPS
• UART8: Smart Audio

GORILLA MOUNT

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

• TBS Gorilla 30×30 Adapter
• TBS Gorilla 20×20 Adapter

DOWNLOADS

• Gorilla mounting pattern
• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• AM32 Firmware
• TBS Lucid Manual
