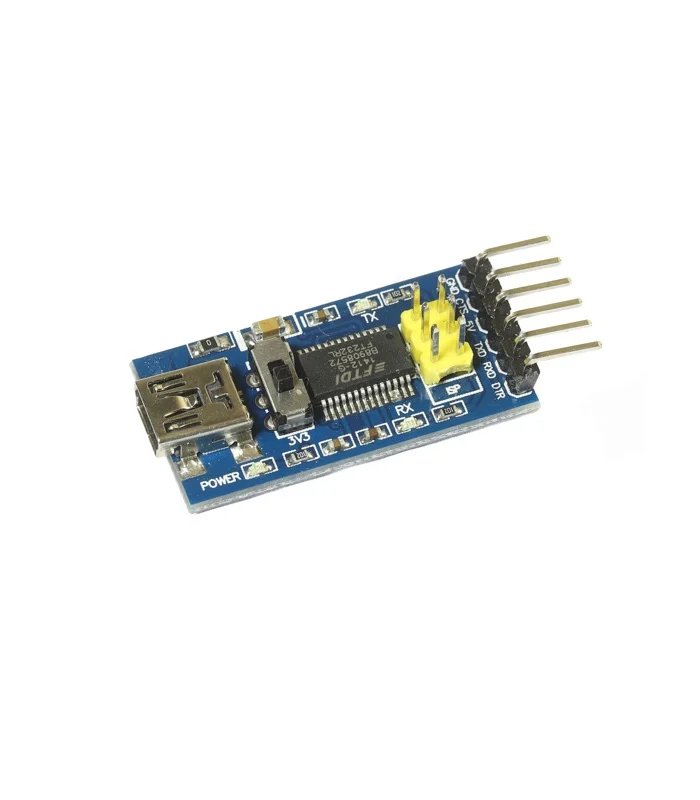

FTDI Serial Breakout Module Programmer – 5V/3.3V (USB to Serial TTL)

USB to UART FTDI 232 Module Breakout Board for Arduino and other Microcontrollers. It is commonly used for communication to and from microcontroller development boards such as the Arduino micros, which do not have USB interfaces. It can also be used for general serial applications.

One of the nice features of this board is the switch that allows the board to be configured to either 3.3V or 5V (both power output and IO level).

Mini USB(B) Data Cable Required.

Features:

• Standard interface layout, compatible with a variety of Arduinos such as the Pro Mini
• Chip: Original FT232RL
• With power, sending, receiving indicator, working status LED indicators
• With 3.3V and 5V TTL Level supply options
• With over current protection, using 500MA self-restore fuse
• Pins: DTR,RXD,TX,VCC,CTS,GND
